How to Install a Reverse Osmosis System (Step-by-Step, 2026)

PureFlow Lab is reader-supported. We may earn a commission when you buy through links in this guide, at no extra cost to you. As an Amazon Associate, we earn from qualifying purchases. See our Disclosure for details.

Installing a reverse osmosis system is one of the more approachable DIY plumbing jobs a homeowner can take on. If you can use a wrench and follow color-coded tubing, you can likely do it. A typical under-sink install needs no special plumbing skills and only basic tools; set aside an unhurried afternoon the first time, more if you need to drill a faucet hole. This guide walks the entire process step by step, covers the differences for tankless systems, and shows you how to flush and test the system so you know it’s working.

Can You Install RO Yourself? (Usually, Yes)

For many homeowners, yes. Modern RO systems are designed for DIY installation: they come with the feed-water adapter, drain clamp, color-coded quick-connect tubing, and the faucet, plus printed instructions.

The one step that trips people up isn’t the plumbing. It’s drilling a hole for the dedicated RO faucet if your sink doesn’t already have a spare opening. On a stainless sink it’s a fairly quick job with the right bit; on granite or quartz it requires a diamond hole saw and a steady hand (more on that below). If you’re not comfortable drilling your countertop, that single step is the one worth hiring out. A plumber can do just the faucet hole, and you handle the rest.

Designs also differ in ways that affect installation. The iSpring RCC7AK, for example, has a top-mounted faucet that installs from above the counter, per iSpring. Tankless systems like Waterdrop’s G3P600 skip the storage tank entirely (fewer parts) but need electricity under the sink.

What You’ll Need

The system itself. See our best reverse osmosis systems guide for under-sink picks, or the best tankless guide if you want to skip the tank. Renters who can’t drill should look at countertop RO instead, since it needs no installation.

Basic tools you probably already have: an adjustable wrench, a Phillips screwdriver, a drill, a bucket and towels, and Teflon (plumber’s) tape.

Three companion products worth buying for the job:

---

Before You Start

Three things to do before you touch a wrench:

1. Read your system’s manual. Every brand routes tubing slightly differently and uses its own color code. The steps below are universal, but your manual is the source of truth for which fitting is which.
2. Clear out the cabinet and lay down a towel. You’ll be working in a tight space; give yourself room and catch drips.
3. Plan your layout. Decide where the unit/filters will mount (usually the cabinet side wall) and, for tank systems, where the storage tank will sit (upright on the cabinet floor is fine). For a tankless unit, confirm there’s a power outlet within reach. Most tankless systems need electricity.

Then shut off the cold water supply under the sink and open the kitchen faucet to relieve pressure.

Step-by-Step: Installing an Under-Sink RO System

This is the standard process for a tank-based under-sink system. Tankless differences are noted in the next section.

Step 1: Shut off the cold water and tap into the supply

Close the cold-water shut-off valve under your sink. Disconnect the cold-water supply line to your faucet, and install the included feed-water adapter (a T-fitting) between the shut-off valve and the faucet line. This is where your RO system draws its source water. Hand-tighten, then snug with a wrench. Don’t overtighten and crack the fitting.

Step 2: Mount the RO faucet

If your sink has a spare hole (often covered by a cap, or used by a sprayer/soap dispenser you don’t need), use it. If not, you’ll drill one:

• Stainless steel sink: use a stepped drill bit. Start slow, keep it lubricated, and the hole takes a few minutes.

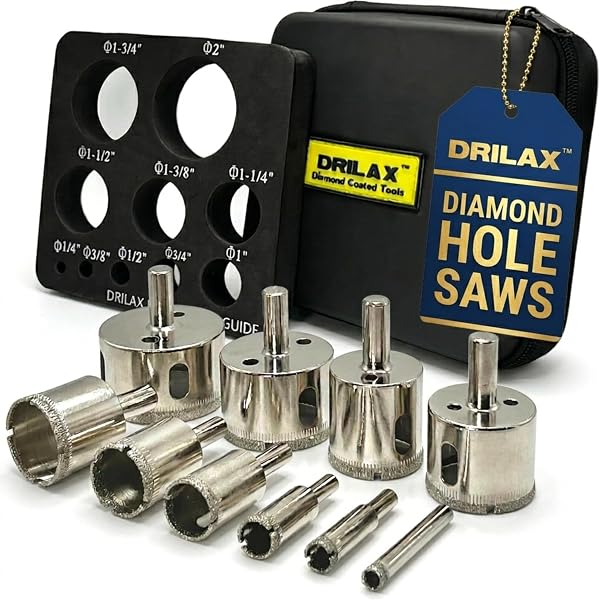

• Granite, quartz, or composite countertop: use a diamond hole saw with water for cooling. Go slow and let the bit do the work. Forcing it cracks stone. If you’re nervous about this, it’s the one step worth hiring a plumber for.

Drop the faucet through the hole, secure it from below with the mounting hardware, and snug it down.

Step 3: Install the drain saddle (drain clamp)

The RO system needs somewhere to send its wastewater. Many kits use a drain saddle clamp on the sink drainpipe; follow your manual’s diagram for where it goes and how it attaches. A typical manual, such as Aquasana’s SmartFlow RO install guide, says to mount the clamp on drainpipe above the trap, not on the same drainpipe as a garbage disposal, then drill the pilot hole, seat the gasket and tighten evenly.

Check local plumbing code first. Some codes require an air-gap faucet or a backflow preventer on the RO drain connection, and some drain layouts (a standpipe or utility sink, for example) need an air gap. Aquasana’s guide tells installers to consult local codes or a licensed plumber; if your area requires an air gap, the saddle-only setup described here won’t be enough.

Step 4: Mount the filter unit

Mount the filter housings or the all-in-one unit to the cabinet wall using the included bracket and screws, leaving enough clearance below to change filters later. (On many tankless units, the whole system is one slim box that can stand on the cabinet floor.) Keep it accessible, since you’ll be back here for filter changes on the schedule in your manual.

Step 5: Connect the tubing (the easy part)

This is where color-coded quick-connect fittings make modern RO systems beginner-friendly. Following your manual’s color map, push each tube fully into its fitting until it seats (a firm push past the initial resistance). Typical connections: feed water in, faucet line out, drain line to the saddle clamp, and (for tank systems) a line to the storage tank.

Quick-connect tip: to seat a tube, push it in firmly; to remove it, push the collar in while pulling the tube out. Make sure every tube is fully inserted. A partially seated tube is a common cause of leaks.

Step 6: Position and connect the storage tank (tank systems)

Stand the pressurized storage tank upright in the cabinet (some manuals allow laying it on its side if space demands, so check yours). Wrap the tank valve’s threads with Teflon tape, thread on the tank connector, and connect the tank tubing. Make sure the tank valve is open.

Step 7: Add leak protection (recommended)

Set the leak-stop valve on the cabinet floor under the system per its instructions. It’s optional, and it’s designed to shut off the supply before a failed fitting floods the cabinet if a fitting ever fails while you’re away.

Step 8: Flush, Then Test

Don’t drink the first water. New RO systems need flushing:

1. Open the feed-water valve and let water begin flowing into the system. Check every connection for leaks as pressure builds (have your towel ready).
2. Open the RO faucet and let it run. Tank systems will sputter air at first, then run. Let the first full tank fill and then drain it completely. This flushes manufacturing residue and carbon fines from the new filters. Repeat for a second tank if your manual says so.
3. Check for leaks one more time after the tank has pressurized. That’s when slow leaks reveal themselves.
4. Test the water. Use your TDS meter: measure your tap water, then your RO water. You should see a large drop. Compare it with the rejection rate your system’s maker states (for example, iSpring lists up to 97% TDS rejection for its replacement 75 GPD membrane, tested under NSF 58 conditions), and note the reading as your baseline for later.

That’s it. You have RO water on tap.

Tankless RO: What’s Different

Tankless systems (like Waterdrop’s G-series or iSpring’s RO500) simplify some steps and add one:

• No storage tank: skip Step 6. Water is filtered on demand, so there’s no tank to position or connect. This reclaims a lot of cabinet space.
• Requires power: most tankless systems need an outlet under the sink (the Waterdrop G3P600 and iSpring RO500AK listings both say so). Confirm you have one before buying.
• Fewer connections overall: generally feed in, faucet out, drain, which can make tankless simpler to plumb than a tank system despite the power requirement.

Everything else (feed adapter, faucet, drain saddle, flushing and testing) is the same.

Common Mistakes to Avoid

• Not fully seating the tubing. A common cause of leaks. Push each quick-connect tube firmly until it stops.
• Forgetting to open the tank valve. If your tank system produces only a trickle, check that the tank ball valve is open.
• Drilling granite with the wrong bit. A standard bit will crack stone. Use a diamond hole saw with water cooling, or hire out just that step.
• Drain connection in the wrong spot, or not to code. Follow your manual’s drain diagram (typically above the trap and off the disposal line), and check whether local code requires an air gap.
• Skipping the flush. Drinking the first tank means drinking carbon fines and manufacturing residue. Always discard the first full tank (or two).
• Overtightening fittings. Hand-tight plus a gentle snug is right; cranking down cracks plastic fittings.

When to Call a Plumber

DIY covers almost everything, but consider a pro if:

• Your countertop is granite/quartz and you’re not confident drilling it (hire out just the faucet hole).
• Your under-sink shut-off valves are old, corroded, or seized.
• You have no accessible cold-water shut-off and need one added.
• You want a tankless system but have no nearby outlet and need an electrician.

Even then, you can often do most of the install yourself and pay a pro for the single tricky step.

FAQ

How long does it take to install a reverse osmosis system?

It varies with your cabinet layout, your plumbing and if you need to drill. For a first-timer, set aside an unhurried afternoon for a standard under-sink system. The biggest variable is drilling a faucet hole. If your sink already has a spare opening, you’ll be on the faster end; drilling granite adds time and care.

Do I need a plumber to install an RO system?

No, not for most installs. RO systems are designed for DIY with color-coded tubing and included hardware. The only step that sometimes warrants a plumber is drilling a faucet hole in a stone countertop, and you can hire out just that step while doing the rest yourself.

Can I install a reverse osmosis system myself on a granite countertop?

Yes, but you need a diamond hole saw (not a standard bit) and water to keep it cool, and you must drill slowly to avoid cracking the stone. If you’d rather not risk it, use an existing sink hole if you have one, or hire a plumber for the drilling step only.

How do I know if my RO system is working after installation?

Use a TDS meter. Measure your tap water and then your RO water. You should see a large drop, in line with the rejection rate your system’s maker states. Also confirm there are no leaks after the system pressurizes.

Why is my new RO system leaking?

The most common cause is a tube that isn’t fully seated in its quick-connect fitting. Push each tube firmly until it stops. Other causes: an under-tightened (or over-tightened and cracked) fitting, or Teflon tape missing on threaded connections like the tank valve. Check connections one at a time after the system is under pressure.

Do tankless RO systems need electricity?

Most do. Tankless systems like the Waterdrop G3P600 and iSpring RO500AK need electricity under the sink, per their listings. Confirm you have an outlet before buying. Standard tank-based systems run on water pressure (the Express Water 5-stage listing, for example, says no electricity is required); tank systems with a booster pump are the exception.

How often will I need to get back under the sink?

For filter changes, on the schedule your maker sets. For example, iSpring’s RO500AK listing gives 6 months for the FCF500 pre-filter, 12 months for the FCA500 post-filter and 24 months for the MRO500 membrane. Mount the unit with enough clearance to swap filters easily. See our RO maintenance guidance for the full schedule.

Bottom Line

Installing a reverse osmosis system is a doable weekend project for many homeowners. It takes basic tools, and color-coded tubing makes the connections beginner-friendly. The only step that gives people pause is drilling a faucet hole in stone, and even that’s manageable with a diamond bit (or a plumber for that one cut). Flush the first tank or two, confirm the drop with a TDS meter, add a leak-stop valve as cheap insurance, and you’re done.

If you haven’t picked a system yet, start with our best reverse osmosis systems guide. If you’d rather avoid installation entirely, a countertop RO system needs no plumbing at all.
